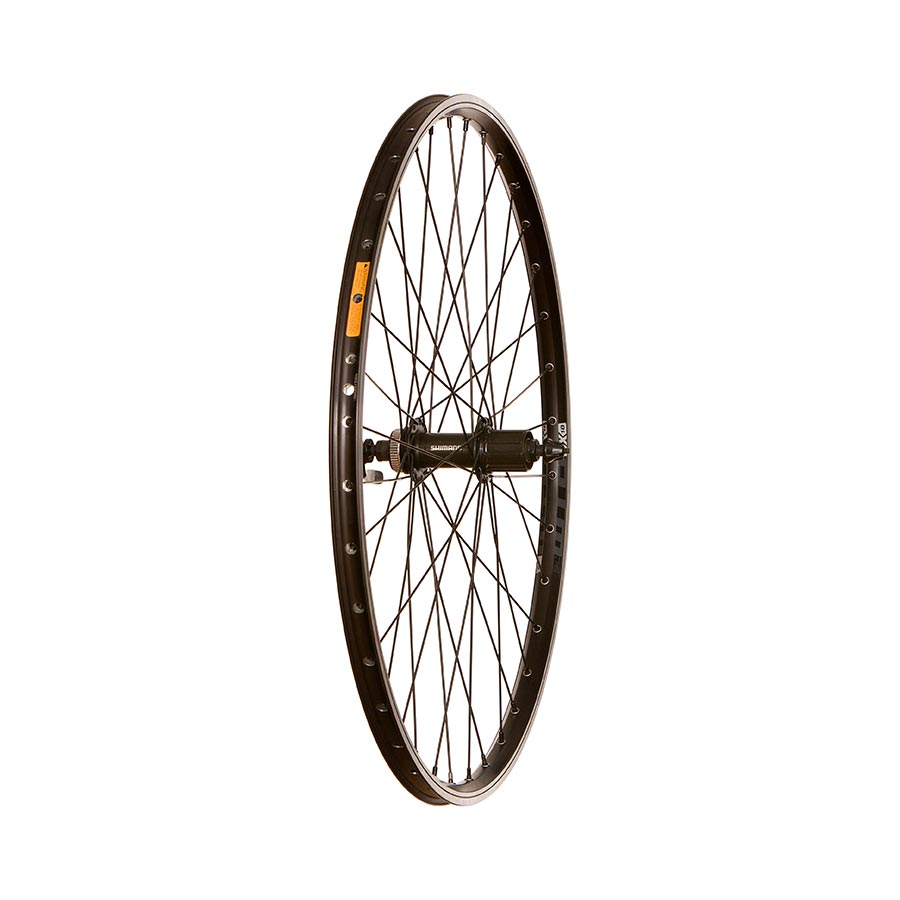

WTB DX18 / Shimano HB-TX505 / FH-TX505 / FH-TY505 26''
Wheel Shop, WTB DX18 / Shimano FH-TY505, Wheel, Rear, 26'' / 559, Holes: 36, QR, 135mm, Rim and Disc CL, Shimano 7 / 26
$121.99
Skip to product information
WTB DX18 / Shimano HB-TX505 / FH-TX505 / FH-TY505 26''
$121.99
- Rims: WTB DX18 26'' (ETRTO 559), inner width: 18 mm
- Anodized black finish
- CNC machined sidewalls
- Stainless steel eyelets
- Rim wear indicator
- Pinned joint
- Drilled for Schrader valve
- 36 holes
Front hub (-01): Shimano HB-TX505
- 9x100mm
- Center Lock Disc Mount
- Adjutable Cup & Cone
- Contact sealed hub
- Quick Release Binder included
Rear hub (-02): Shimano FH-TX505
- 10x135mm
- Center Lock Disc Mount
- Adjutable Cup & Cone
- Contact sealed hub and freehub body
- Quick Release Binder included
- Compatible with 8,9,10 speed (MTB 11 speed requires 1.85mm spacer, not included)
Rear hub (-03): Shimano FH-TY505
- 10x135mm
- Center Lock Disc Mount
- Adjutable Cup & Cone
- Contact sealed hub and freehub body
- Quick Release Binder included
- Compatible with a 7 speed HG cassette only
Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
Attributes
| Rim inner width range | 0-21.9mm |
| Hub Spacing | 135mm |
| Rim Color | Black |
| Wheel Diameter/ISO | 26'' / 559 |
| Rim Material | Aluminum |
| Valve | Schrader |
| Rim Internal Width | 19mm |
| Spoke Type | J-Bend |
| Rim Construction | Double wall |
| Rim Drilling | 36 |
| Rim Model | WTB DX18 |
| Freehub Body | Shimano 7 |
| Skewers Included | Yes |
| Depth | 18mm |
| Axle Type | QR |
| Hub Model | Shimano FH-TY505 |
| Position | Rear |
| Rim External Width | 23.5mm |
| Wheel Tire Type | Clincher |
| Wheel-Brake Comp. | Disc Center Lock / Rim |
