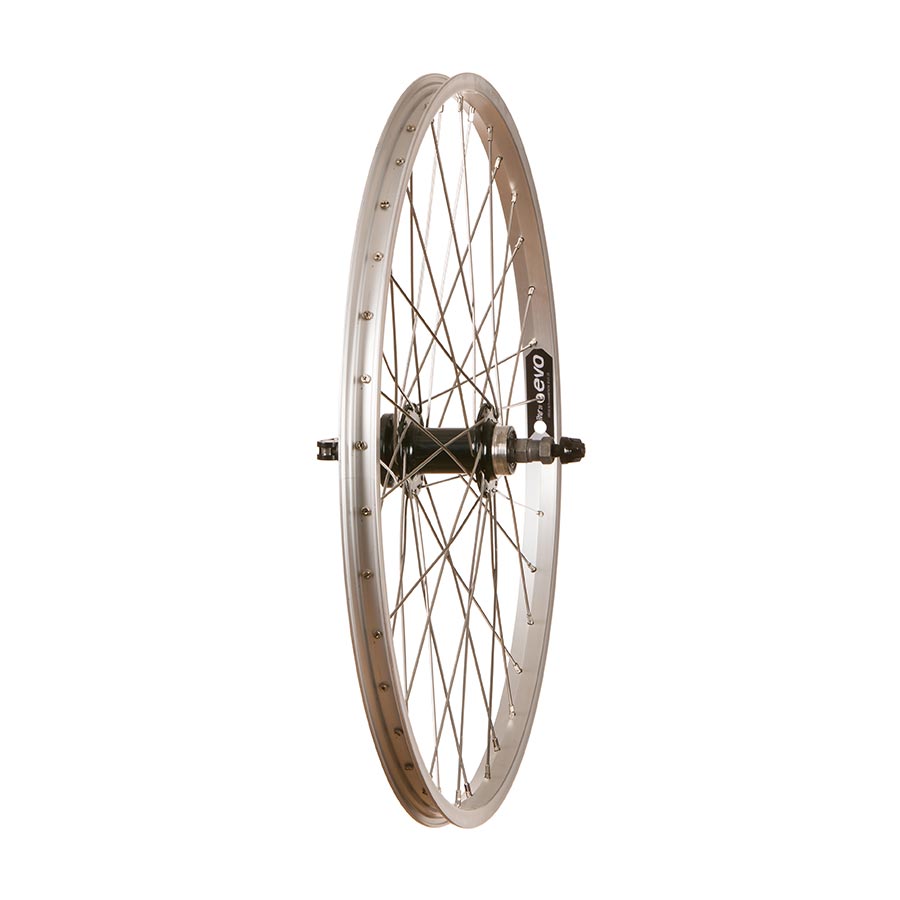

Evo Tour 20 QR Rim and Disc 24''
Wheel Shop, Evo Tour 20, Wheel, Rear, 24'' / 507, Holes: 36, QR, 135mm, Rim and Disc IS 6-bolt, Freewheel / 24
$74.99
Skip to product information
Evo Tour 20 QR Rim and Disc 24''
$74.99
- Rims: EVO Tour 20
- 24'' (ETRTO 507)
- Inner width: 19.8 mm
- Recommended tire size range: 24'' x 1.5'' to 2.25''
- Silver
- Pinned joint
- Drilled for Schrader valve
- Rim and Disc brake compatible
- 36 holes
Front hub:
- QR 9x100mm (Binder included)
- 6-Bolt Disc Mount
- 6061 Alloy
- Black
- Adjustable bearings
- Rubber seals
Rear hub:
- QR 10x135mm (Binder included)
- 6-Bolt Disc Mount
- 6061 Alloy
- Black
- Adjustable bearings
- Rubber seals
- Freewheel
Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples
Attributes
| Spoke Type | J-Bend |
| Rim Model | Evo Tour 20 |
| Rim Color | Silver |
| Rim Construction | Single wall |
| Rim Material | Aluminum |
| Skewers Included | Yes |
| Axle Type | QR |
| Hub Spacing | 135mm |
| Position | Rear |
| Wheel Tire Type | Clincher |
| Wheel-Brake Comp. | Rim and Disc IS 6-bolt |
| Rim Internal Width | 19.8mm |
| Rim inner width range | 0-21.9mm |
| Wheel Diameter/ISO | 24'' / 507 |
| Rim Drilling | 36 |
| Depth | 16.8mm |
| Freehub Body | Freewheel |
| Valve | Schrader |
